Fabbrikant tal-kejbil ta 'RG58 Coaxial Cable

Ċertifikati tagħna: Fabbrika tagħna: Prodotti prinċipali tagħna: 1) RG serje Coaxial Cable: rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, eċċ; 2) Serje JIS Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D -2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, ......

Ibgħat l-inkjestaChat Now


Kostruzzjoni
Konduttur Intern Ram fil-bottijiet 19 x 0.18 mm
Dieletriċi PE ta 'Densità Baxxa Φ2.95 ± 0.10 mm
Kontroll tal-barra (ilqugħ) Ram tal-landa 112 x 0.13 mm
Kopertura ta 'Shield 95%
Vinka PVC jew LSZH Φ4.95 ± 0.10 mm

Karatteristiċi elettriċi u mekkaniċi
Impedenza 53 ± 3 Ohm
Kapaċità nominali 100pF / m
Velocity of Propagation 66%
Reżistenza għall-iżolazzjoni > 2000 Mohm.Km
Reżistenza tal-Konduttur Intern 37.5 Ohm / Km
Reżistenza għall-Konduttur ta 'Barra 16.5 Ohm / Km
Test / Operatig Vultaġġ (Max) 5KV / 2.5KV
Firxa tat-Temperatura Operattiva -30 ° C ~ + 70 ° C
Eżekuzzjoni tal-Iskrining (100-900MHz) > 55dB

Attenwazzjoni
Frekwenza (MHz) Attenuation (Max.dB / 100m) Attenuation (Max.dB / 100ft)
50 10.80 3.29
100 16.02 4.88
200 24.06 7.32
400 37.70 11.49
500 41.30 12.59
600 49.70 15.15
860 64.20 19.57
1000 70.04 21.34

Telf tar-Ritorn
30-300 MHz > 27dB
300-600 MHz > 23dB
600-900 MHz > 22dB

Iċ-ċertifikati tagħna:

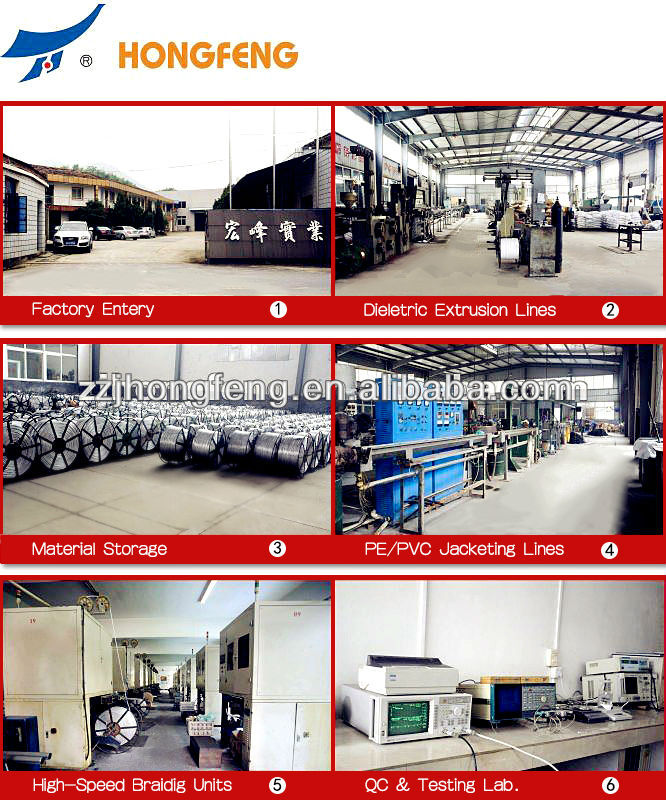

Fabbrika tagħna:

Prodotti prinċipali tagħna:

1) RG Coaxial Cable: rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, eċċ;

2) Serje JIS Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D -2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, 12D-FB, eċċ;

3) Serje Vatc Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) SERJE LMR: LMR200, LMR400, LMR600;

6) Kejbils tan-Netwerk: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7; 7) Cable Kombinat: Kejbils Siamese: RG59 + 2C, RG6 + LAN cable, RGB5CRG59, BT3002.
